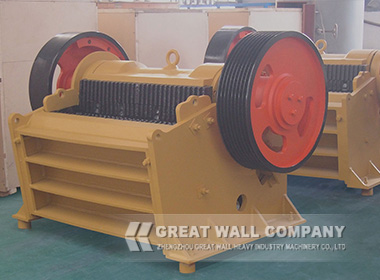

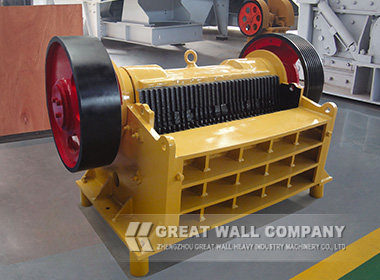

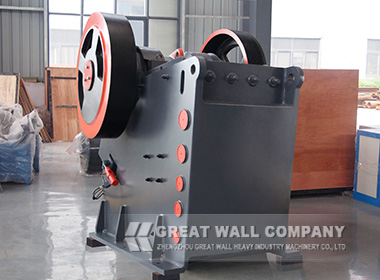

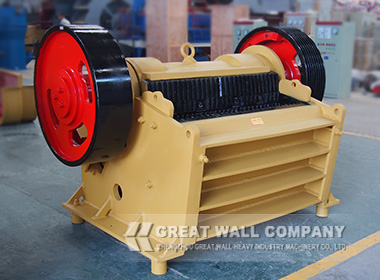

PEW European jaw crusher is a new type of jaw crusher designed and produced by our company on the basis of absorbing advanced jaw crusher technology from Europe and America. It is used for coarse crushing, medium crushing of all kinds of ores and rocks, much more advantageous when crushing hard material .Widely used in mines, building materials, metallurgy, electric power, water conservancy, transportation and other fields.

The motor drives belt and pulley, and makes the movable jaw swing up and down through the eccentric shaft. When movable jaw pushes the movable jaw plate to move towards the fixed jaw plate, materials are squeezed, rolled and crushed. When the movable jaw and movable jaw plate move backward under the action of eccentric shaft and spring, previously broken materials are discharged from the bottom discharge mouth of the crushing chamber. With the continuous operation of the equipment, the material is continuously broken and discharged to achieve volume production.

1. The machine frame is of reinforced welded structure, bearing block is of integral cast steel structure, eccentric shaft is made of high-strength forging parts, and the finite element software analysis and optimization make the equipment have higher impact resistance, low failure rate and high reliability;
2. Symmetrical "V" type crushing cavity design, large stroke and reasonable speed matching make crushing ratio bigger, capacity higher, and output particle size more uniform;
3. Large size bearings are used for higher carrying capacity. At the same time, the bearing chamber adopts effective labyrinth sealing method to greatly extend the service life of bearing;
4. Wedge adjustment device is adopted in the adjustment of discharge mouth, which makes the adjustment operation much easier, safer and faster.

Model	Feed Opening Size (mm)	Max Feeding Size (mm)	Adjustable Range of Outlet (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PEW180×1300	180×1300	150	10-30	12-35	30-37	6	1320×2150×1175
PEW250×1000	250×1000	220	20-40	15-50	30-37	5.9	1400×1850×1310
PEW250×1200	250×1200	220	20-40	18-60	37-45	7	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	37-45	8	1920×1460×1840
PEW760×1100	760×1100	640	75-200	150-310	110-132	24	2950×2360×2760
PEW860×1100	860×1100	720	100-225	200-420	132-160	32	3300×2320×3120
PEW1100×1200	1100×1200	930	150-275	300-600	185-200	59.2	4140×2660×3560

Note: 1. Any change of technical data will not inform additionally.
